| Model Parameters | ||
|---|---|---|

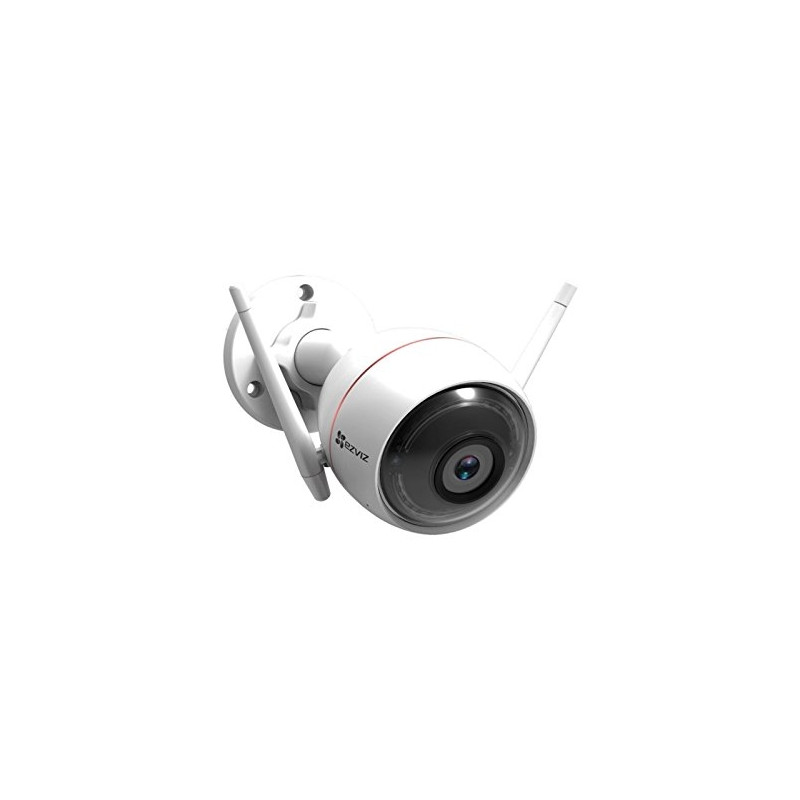

| Name | Husky Air (720P) | Husky Air (1080P) |
| Model | CS -CV310-A0-3B1WFR | CS-CV310-A0-1B2WFR |
| Camera | ||
| Image Sensor | 1/4” Progressive Scan CMOS | 1/2.7” Progressive Scan CMOS |
| Minimum Illumination | 0.02 lux @(F2.0, AGC ON), 0 lux with IR | 0.02 lux @(F2.0, AGC ON), 0 lux with IR |
| Shutter Speed | Self-adaptive shutter | Self-adaptive shutter |
| Lens | 2.8mm@ F2.2, Horizontal angle: 92° Diagonal angle: 108°
4mm@ F2.0, Horizontal angle: 72° Diagonal angle: 86° 6mm@ F2.0, Horizontal angle: 36° Diagonal angle: 42° |
2.8mm@ F2.2, Horizontal angle: 103° Diagonal angle: 118°
4mm@ F2.0, Horizontal angle: 87° Diagonal angle: 104° 6mm@ F2.0, Horizontal angle: 54° Diagonal angle: 62° |
| Lens Mount | M12 | M12 |
| Day & Night | IR-cut filter with auto-switching | IR-cut filter with auto-switching |
| DNR | 3D DNR | 3D DNR |
| WDR | Digital WDR | Digital WDR |
| Compression | ||
| Video Compression | H.264 | H.264 |
| H.264 Type | Main profile | Main profile |
| Video Bit Rate | HD, Balanced and smooth. Adaptive bit rate | Full HD, Balanced and Smooth. Adaptive bit rate |
| Image | ||
| Max. Resolution | 1280×720 | 1920×1080 |
| Image setting | Brightness, contrast, saturation, etc. (configurable via EZVIZ Studio) | Brightness, contrast, saturation, etc. (configurable via EZVIZ Studio) |
| BLC | Support | Support |
| Network | ||
| Storage | Support Micro SD card (Max. 128G) | Support Micro SD card (Max. 128G) |
| Smart Alarm | Motion detection | Motion detection |
| Wi-Fi Pairing | SmartConfig (Wi-Fi One-Key Configuration)/AP paring | SmartConfig (Wi-Fi One-Key Configuration)/AP paring |
| Protocol | EZVIZ cloud proprietary protocol | EZVIZ cloud proprietary protocol |
| Interface Protocol | EZVIZ cloud proprietary protocol | EZVIZ cloud proprietary protocol |
| General Features | Anti-Flicker, Dual-Stream, Heartbeat Messages, Mirror Image, Password Protection, Watermark | Anti-Flicker, Dual-Stream, Heartbeat Messages, Mirror Image, Password Protection, Watermark |
| Minimum Network Requirements | 1M | 2M |
| Wi-Fi | ||
| Standard | IEEE802.11b, 802.11g, 802.11n | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20MHz | Supports 20MHz |
| Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| Transmission Rate | 11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbpss | 11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbpss |
| General | ||
| Operating Conditions | -30°C ~ 60°C, Humidity 95% or less (non-condensing) | -30°C ~ 60°C, Humidity 95% or less (non-condensing) |
| Power Supply | DC 12V±10% | DC 12V±10% |
| Power Consumption | Max. 6W | Max. 6W |
| IP Grade | IP 66 | IP 66 |
| IR Range | Max. 30meters | Max. 30meters |
| Product Dimensions | 150mm x 85mm x 72mm | 150mm x 85mm x 72mm |
| Packaging Dimensions | 252mm x 110mm x 92mm | 252mm x 110mm x 92mm |
| Weight | 326g | 326g |
